What Is a Bi-LED Fog Projector and How Does It Work?

A Bi-LED fog projector is an automotive fog light upgrade that uses LED light sources and a projector lens structure to create a controlled beam pattern.

It is designed to improve near-road visibility in fog, rain, snow, and low-light driving conditions.

Compared with basic fog light bulbs, a Bi-LED fog projector offers stronger optical control and a more professional lighting result.

For retrofit shops, distributors, and wholesalers, this product category is important because it is not just a replacement light. It is a complete lighting upgrade solution.

What Is a Bi-LED Fog Projector?

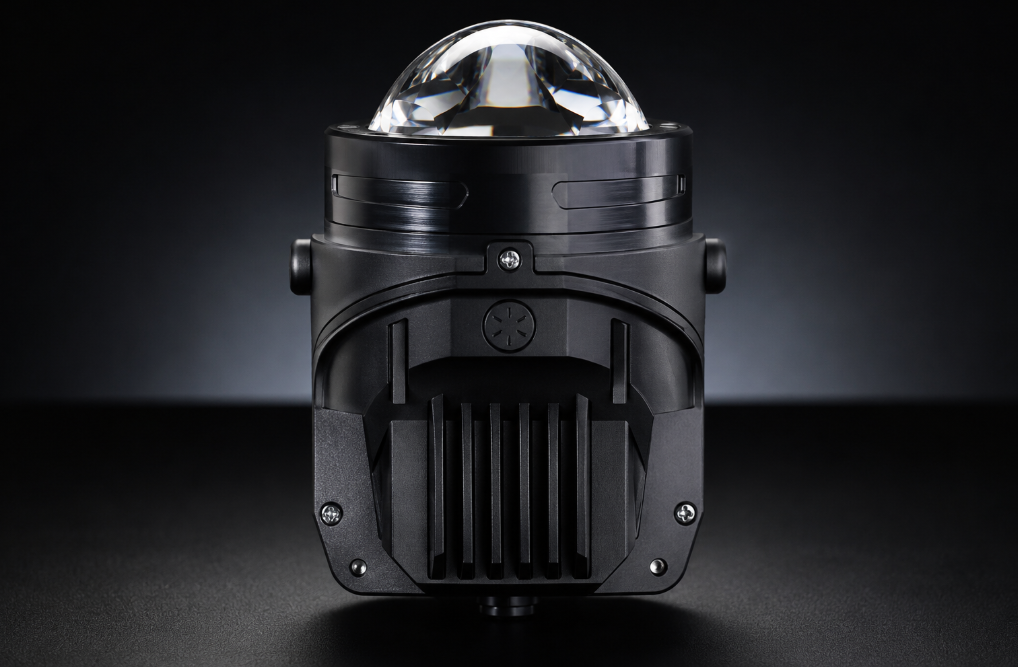

A Bi-LED fog projector combines LED chips, an optical reflector, a projector lens, and a housing structure. The LED chips create the light.

The reflector collects and directs the light. The projector lens shapes the beam and projects it onto the road.

The word “Bi-LED” usually means the projector can support two lighting functions, such as low beam and high beam.

In fog projector applications, this gives the product more flexibility than a basic single-function fog lamp.

A good Bi-LED fog projector should not only be bright. It should create a useful beam pattern, reduce scattered light, and improve visibility close to the vehicle.

How Does a Bi-LED Fog Projector Work?

The working process starts with the LED light source. High-power LED chips generate the light output. Then the optical reflector controls how the light is collected and redirected.

After that, the projector lens controls the final light distribution. This is where the difference becomes clear. A normal bulb may produce light, but it cannot always control where that light goes.

 A projector structure helps create a more focused and usable beam.

For example, a fog projector with a flat cut-off line can keep the light lower and more controlled. This helps reduce unnecessary glare and makes the beam more suitable for fog light applications.

Why Beam Pattern Matters

Beam pattern is one of the most important parts of fog projector performance. Fog lights are not designed to replace headlights. They are designed to support short-distance visibility in poor weather.

A good fog projector should light the near road area, road edges, and lower field of view. If the beam is too scattered, the light may reflect back in fog or rain. If the beam is too narrow, it may not help enough in real driving.

This is why professional buyers should check beam test photos, wall test results, and road test images before choosing a Bi-LED fog projector.

Low Beam and High Beam Performance

Low beam performance is important for daily use and bad weather visibility. High beam performance helps when drivers need more distance in dark areas.

For example, the GT10 Bi-LED Fog Projector uses a 60W low beam and 65W high beam, with 3500LX low beam and 4000LX high beam measured at 5 meters.

This gives buyers a clear way to compare actual beam strength instead of only looking at lumen numbers.

GT10 Plus and GT10 Pro use stronger high beam structures, reaching 6000LX high beam at 5 meters. This makes them more suitable for markets that need stronger long-distance support and premium upgrade options.

What Should Buyers Check?

Before choosing a Bi-LED fog projector, buyers should check these points:

Low Beam Lux

High Beam Lux

Wattage

Color temperature

Beam pattern

Cut-off line

Lens material

IP rating

Cooling structure

Installation space

Market positioning

For distributors and retrofit shops, product differentiation also matters. A standard original-lens fog projector may be suitable for entry-level upgrade packages.

A single-laser or double-laser version can support higher-value product positioning.

Who Should Use Bi-LED Fog Projectors?

Bi-LED fog projectors are suitable for professional retrofit shops that want to offer more than basic bulb replacement.

They are also useful for wholesalers and distributors that want products with clear selling points.

Compared with ordinary fog light bulbs, a projector-based product is easier to explain through beam pattern, Lux data, lens structure, and weather-use scenarios.

For end users, installation should usually be handled by a professional retrofit technician.

Final Advice

A Bi-LED fog projector is not just a brighter fog light. It is a controlled optical system designed for better near-road visibility and more professional lighting performance.

When choosing one, do not only compare brightness. Check the beam pattern, cut-off line, Lux data, lens material,

 IP rating, and supplier support. For business buyers, the best fog projector is the one that can improve driving visibility and create a clear product story for the local market.
